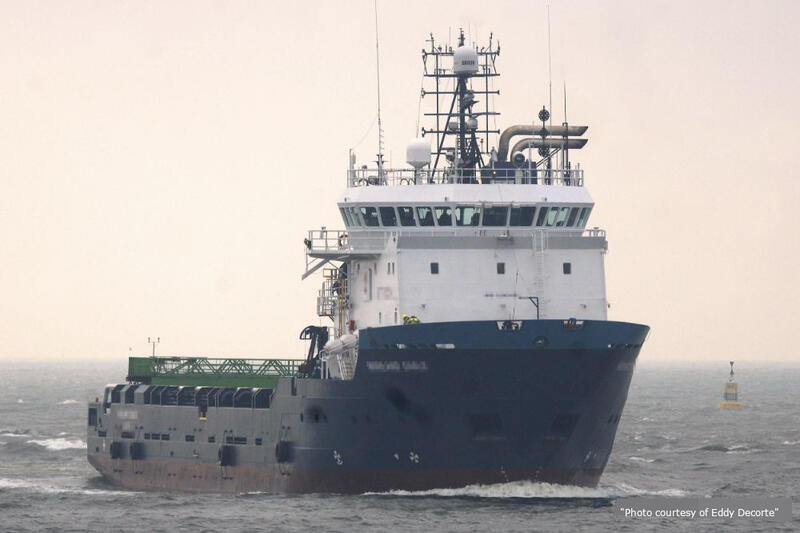

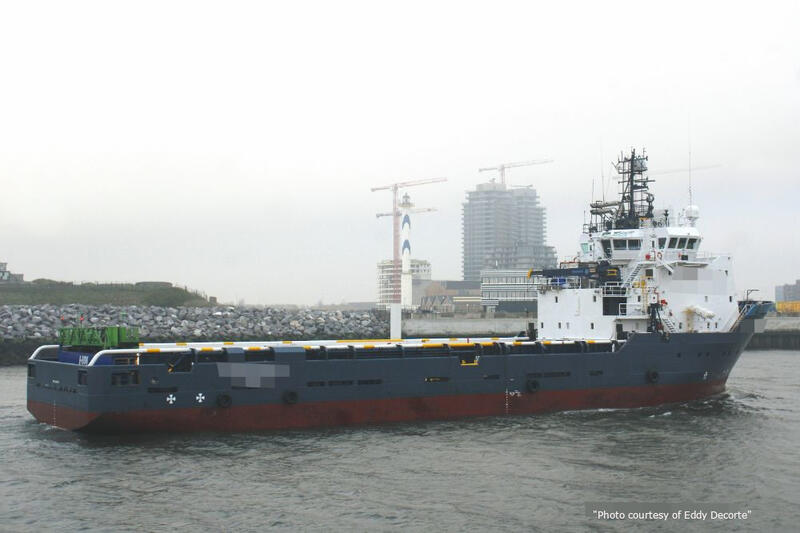

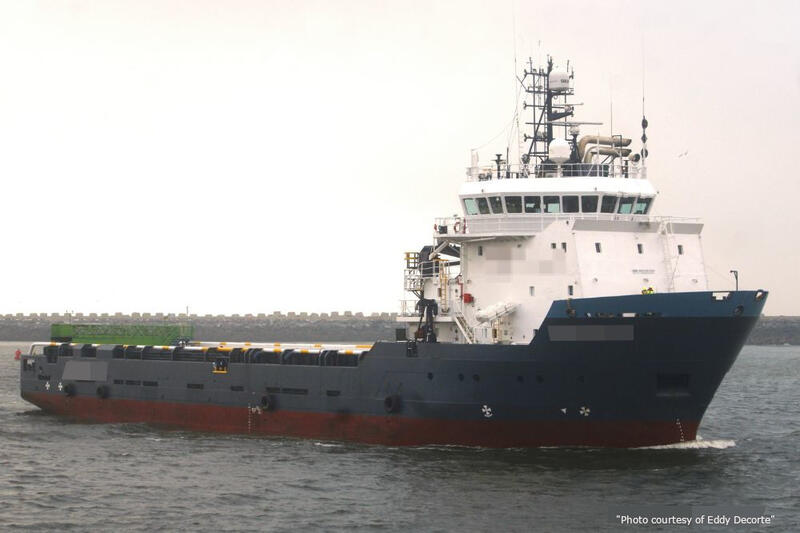

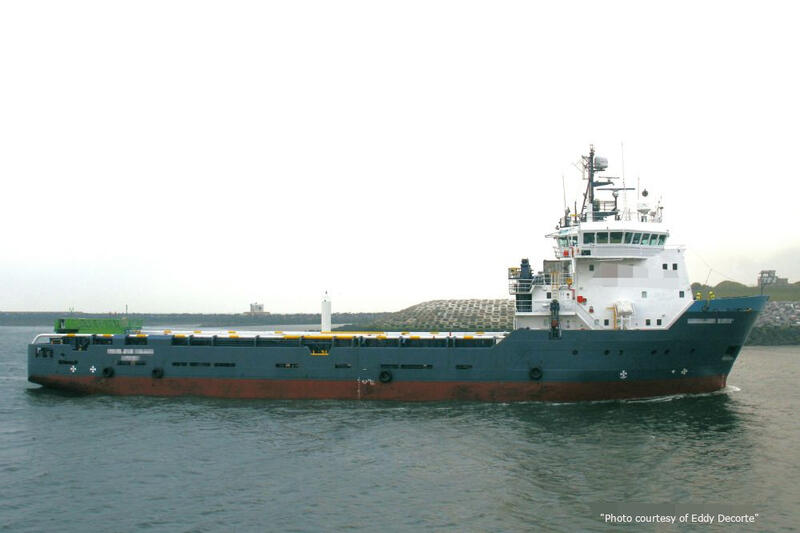

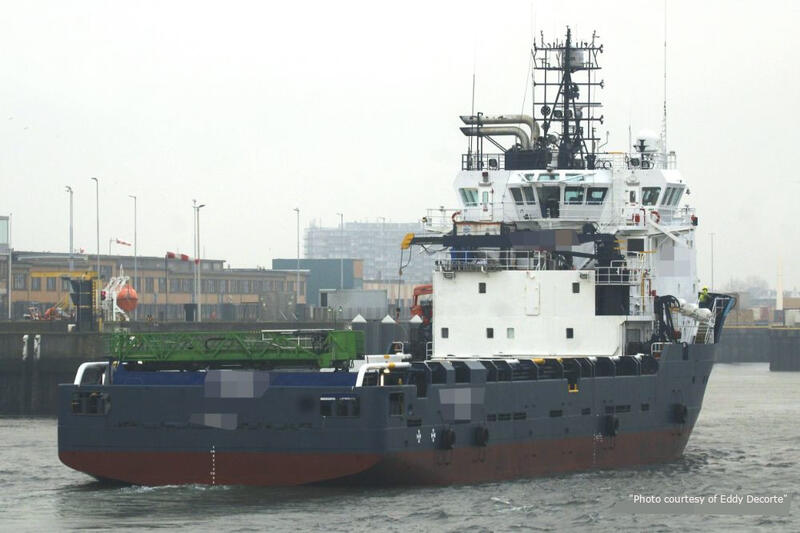

DO0307 Offshore - Supply Support Vessel For Sale & Charter
- FROM DIRECT OWNERS -

Presently under charter

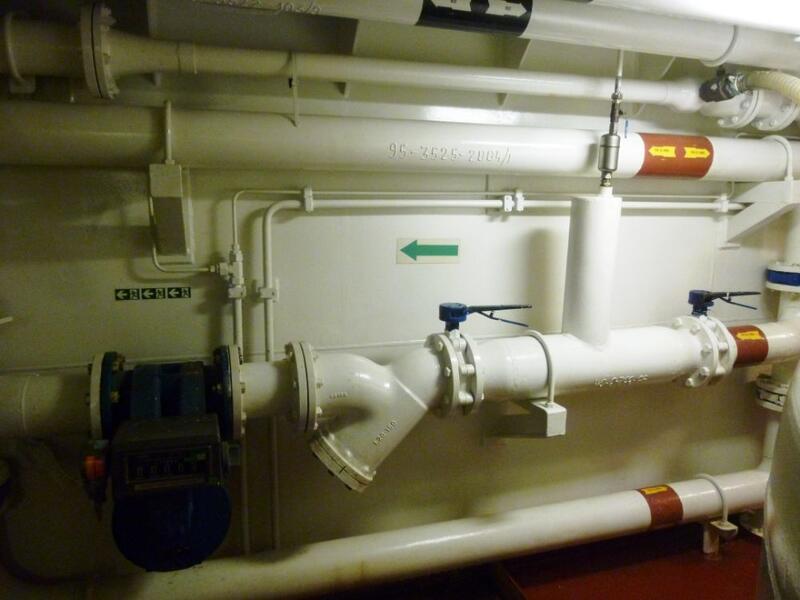

DISCHARGE RATES
Fuel 200m3/h
Pot Water 200 m3/h
Drill Water 150 m3/h
Oil Based Mud 75 m3/h
Base Oil 150 m3/h
Brine 75 m3/h
Cement 80 T/h
Barytes 60 T/h
Bentonite 100 T/h

Specifications

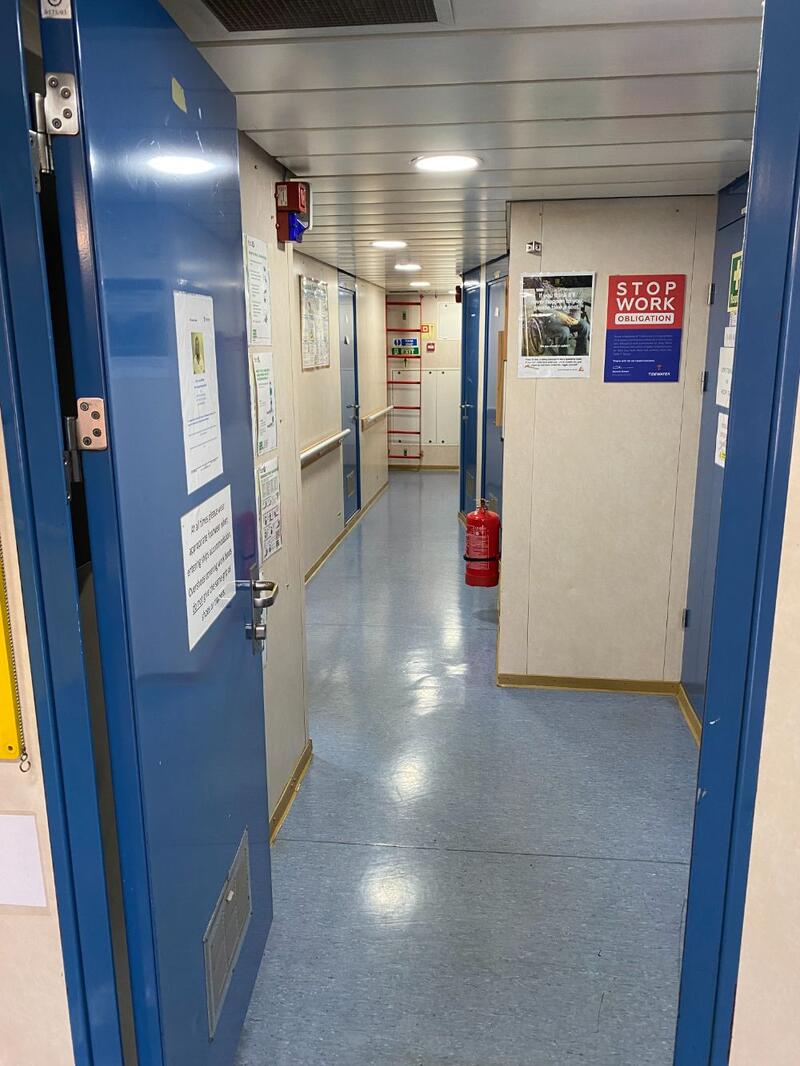

Accommodation

14 x 1 Man
12 x 2 Man

SURVEY ROOMS
6m x 3.5m survey room (main deck)
5.5 m x 4m survey office (A deck)
19" racks and 220v power
Telemetry/video /data link to bridge and Client cabins

Construction

Built (year and place) 2003,NORWAY
Hull material Steel
Length Overall (m) 72.00 m
Breadth (m) 16.00 m
Depth (m) 7.00 m
Draft (m) 5.90 m
NT (tons) 936 tons
GT (tons) 2244 tons
DWT (tons) 3200 tons

CARGO CAPACITY

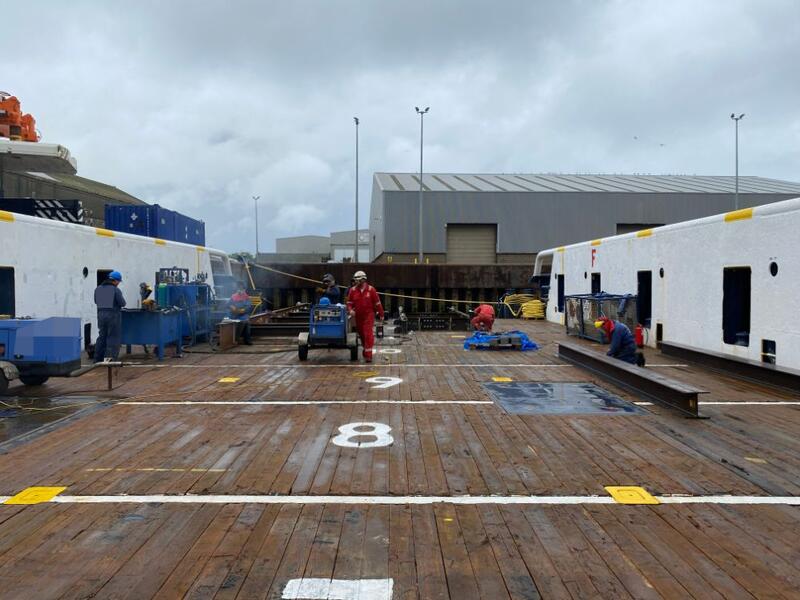

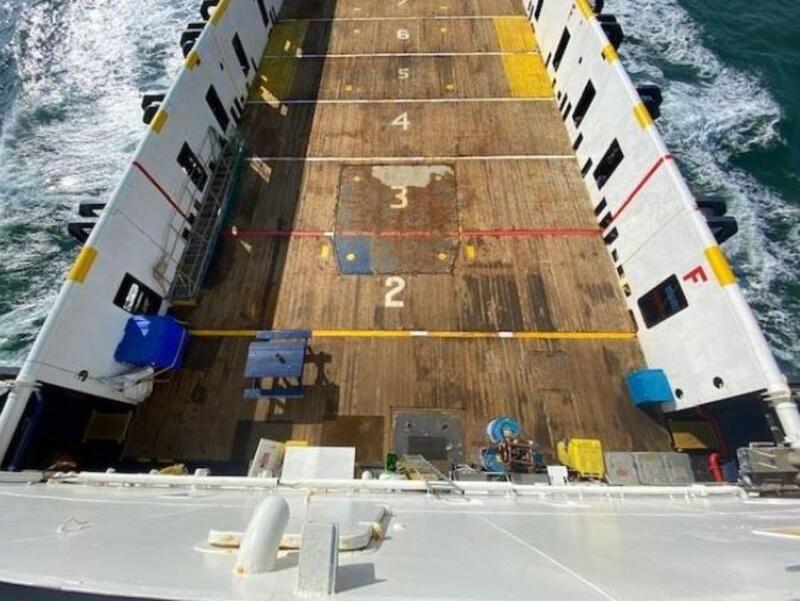

Deck Area 640 m2
Deck Load 1500 T
Drill Water 1,152.4 m3
Oil Based Mud 769.3 m3
Base Oil 208 m3
Brine 769.3 m3
Dry Bulk 256 m3

Equipment

EXTRA FEATURES FOR ROV OPERATIONS

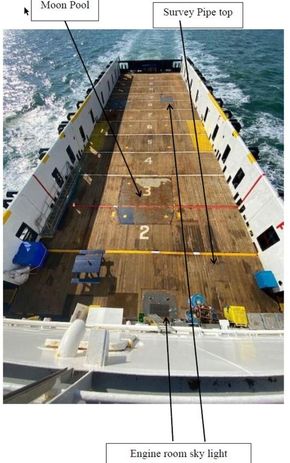

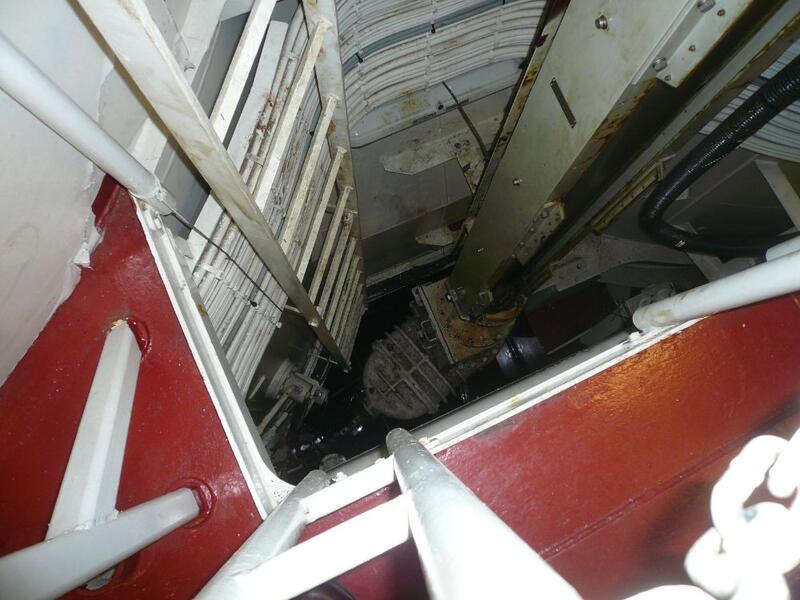

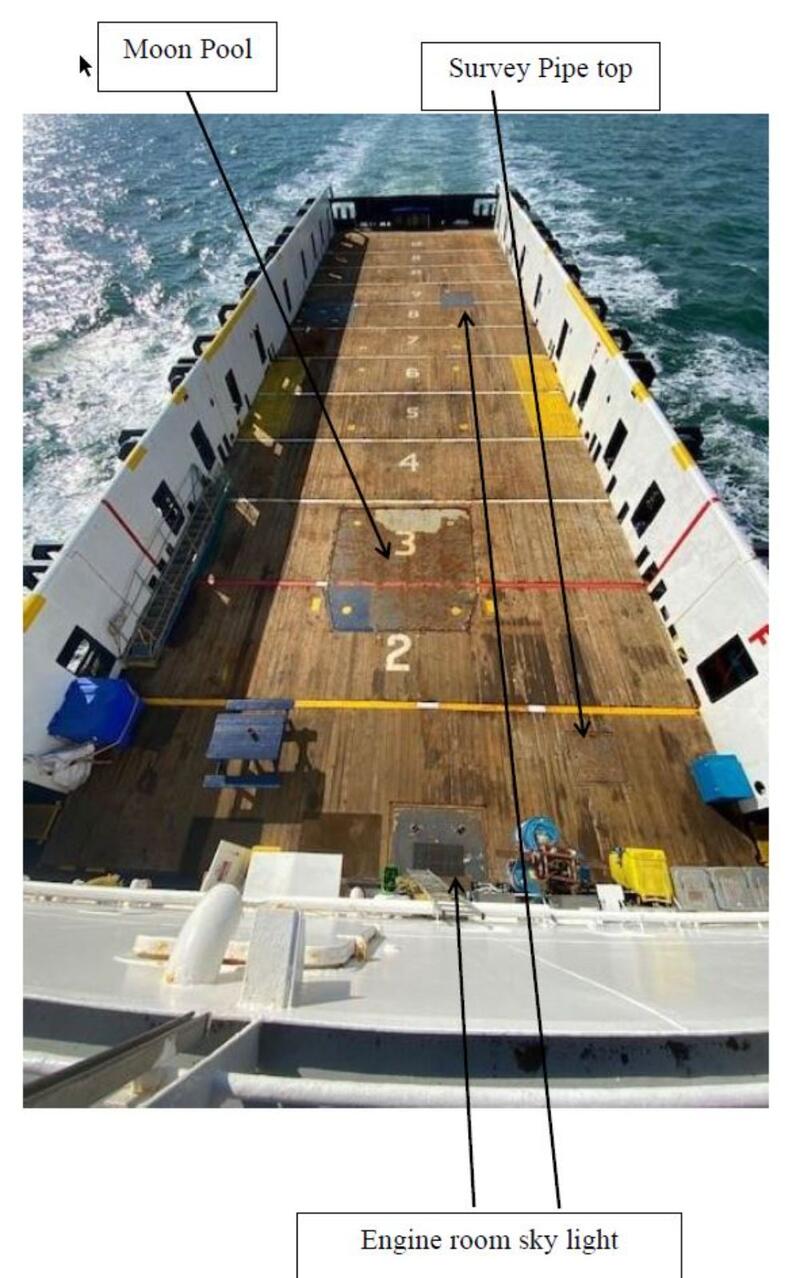

Moon Pool (4.35 x 3.8m) passively stabilised
Main deck aft reinforced for 150 T "A" frame
Main deck power supplies (2x440v/600 A)
Survey tuve (0.5m clear hole)

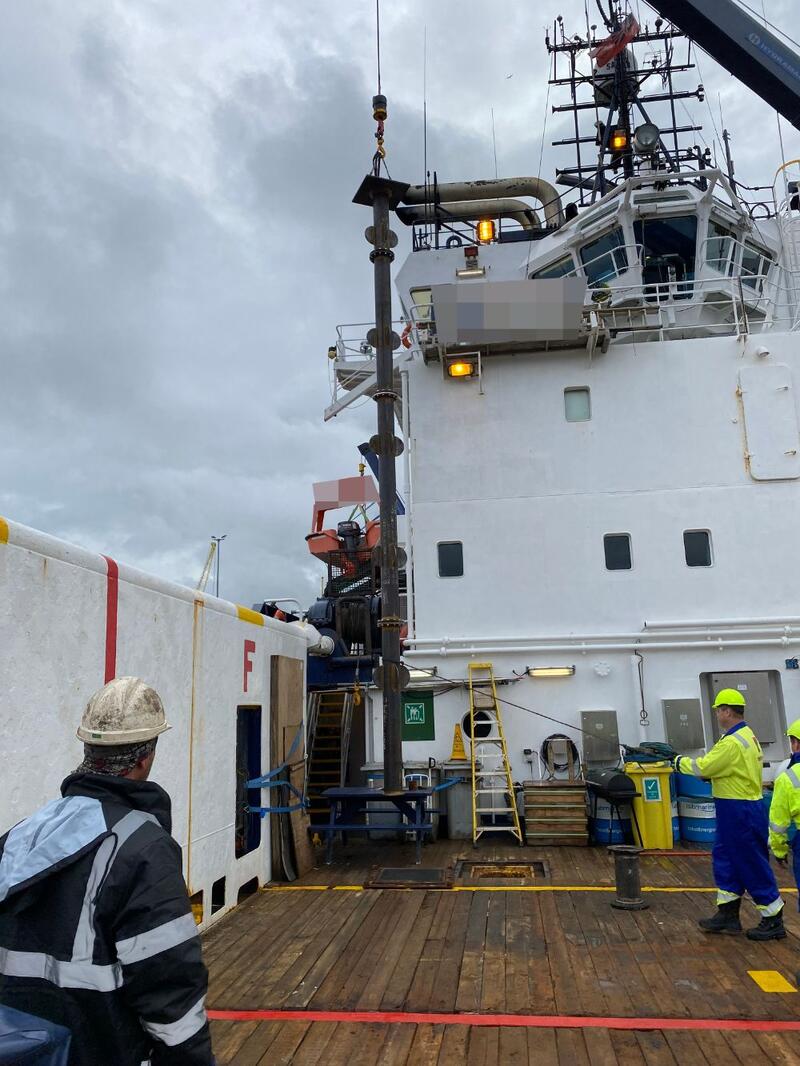

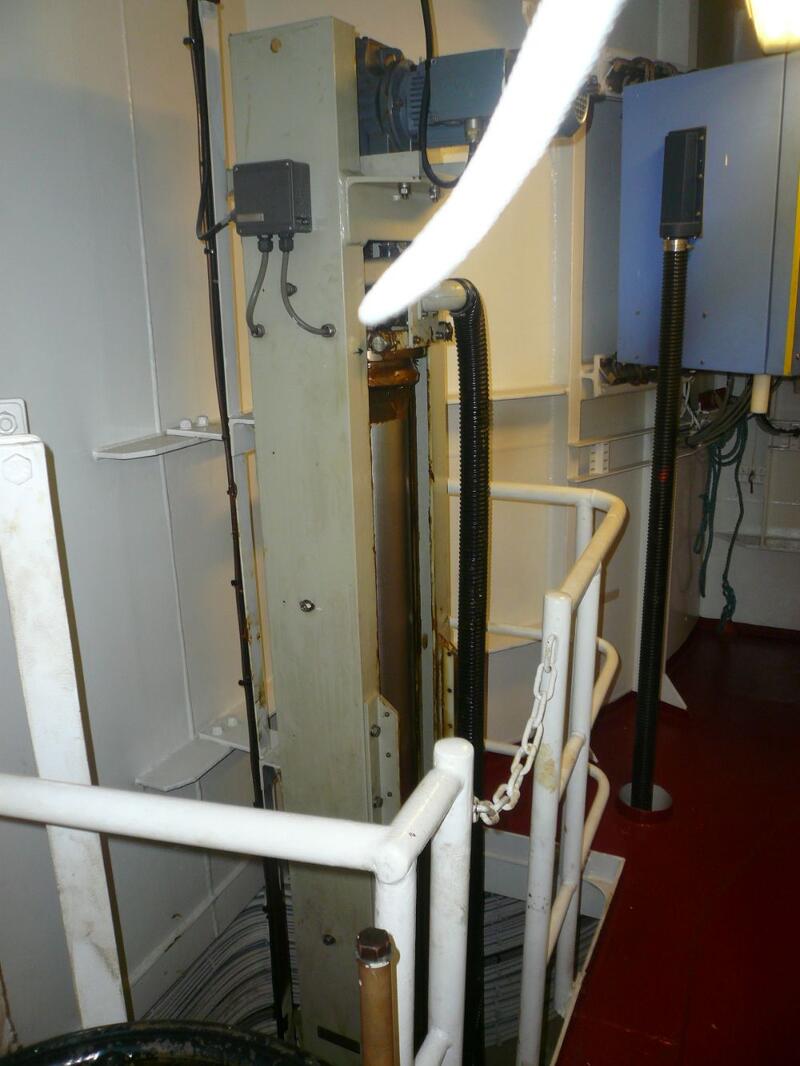

Survey pole (projects up to 4.0m below hull)
Spare 14" gate valve (PS opposite HiPAP for 2nd Gantry and pole system)

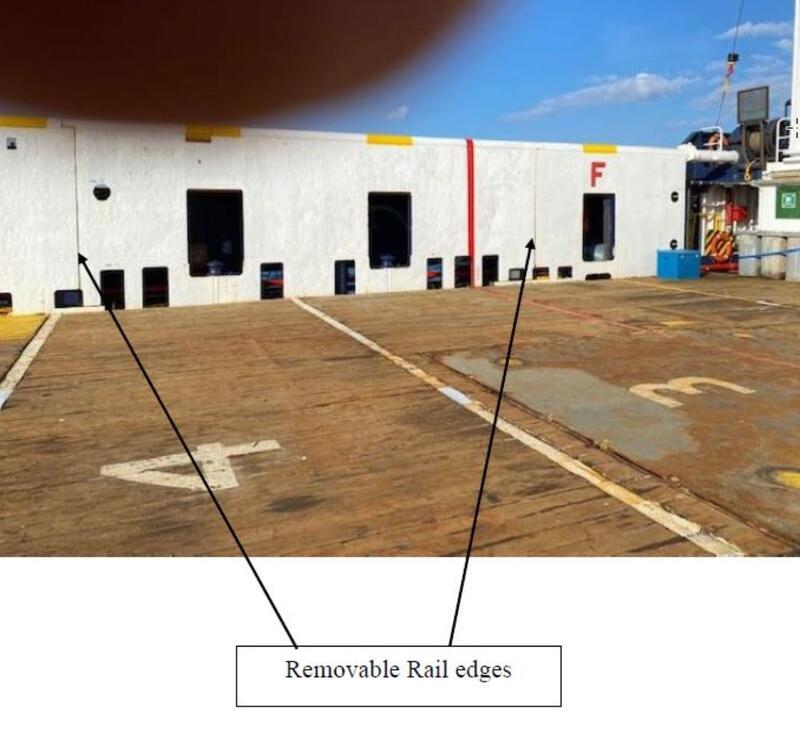

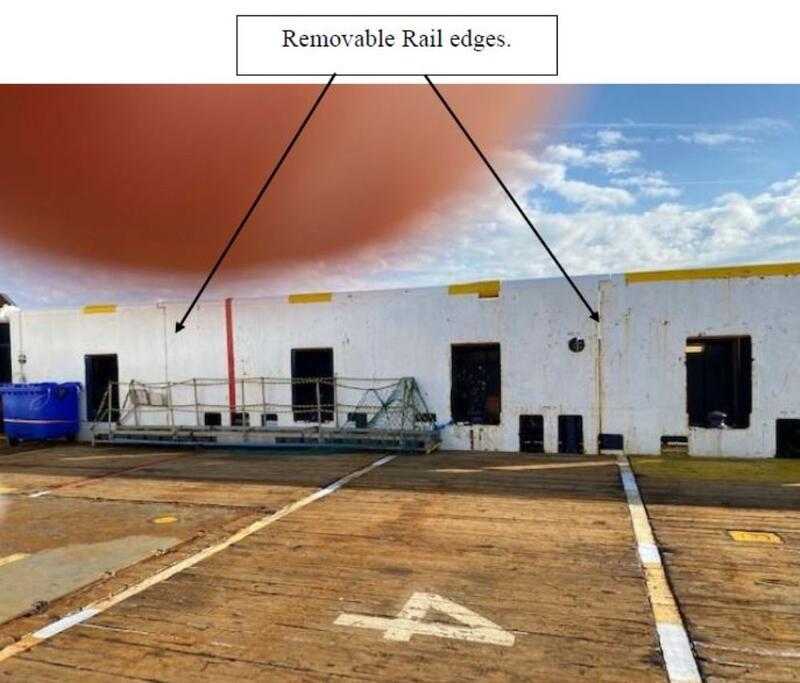

Removal cargo rails P&S for ROV launch (8.275m each side in 2 sections)

CRANES
Deck Crane 1x5T @ 10m (Max 65m of 19 mm wire)
Aft deck strengthened for 400 T/M Crane, flush with deck, with power supply

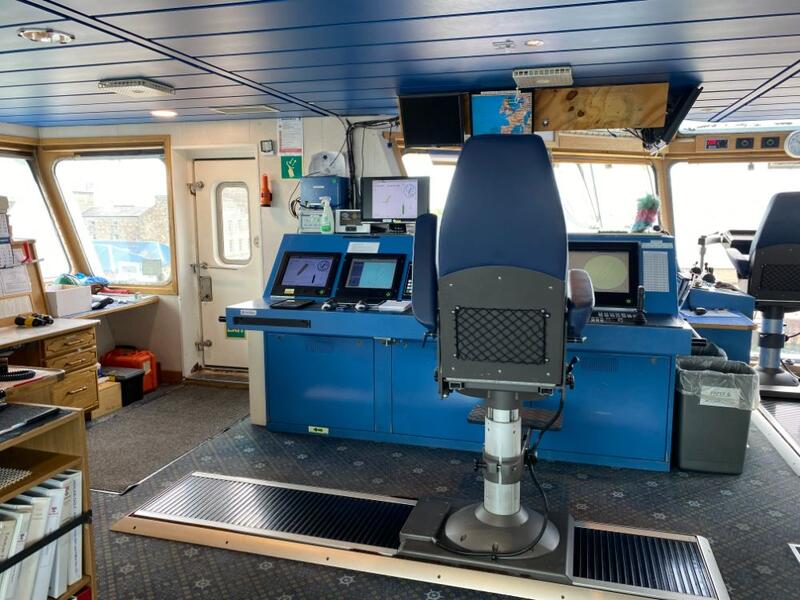

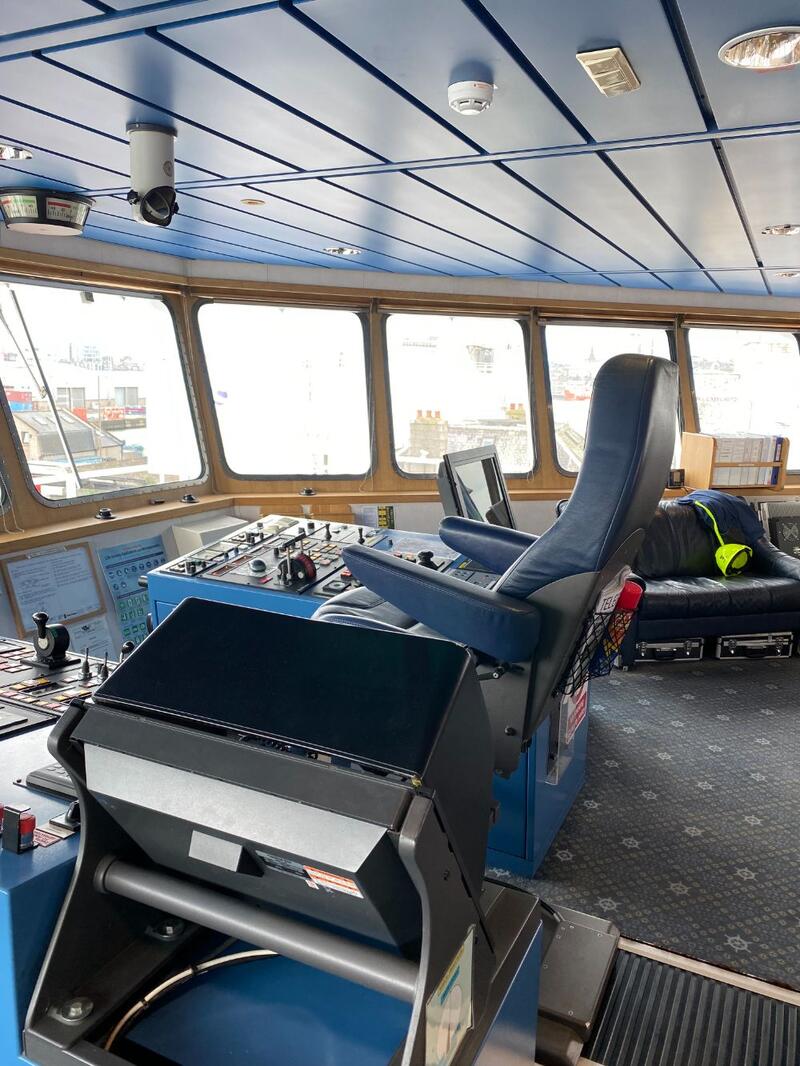

Navigation Equipment

1 Furuno 10 CM ARPA RADAR
1 Furuno 3CM RADAR, Model 2115
1 Furuno Satellite Navigator GP 31
1 Jotron EPIRB
2 Jotron 9Ghz Radar transponder
3 Navico SRH 150 VHF GMDSS
4 Motorola GP 900 portable UHF
2 GSM Cellular phones
3 Anschutz digital autopilot
1 Furuno echo sounder FE-700
1 Furuno Doppler speed log DS80
2 Windobserver 11 wind indicator
1 Furuno MF/HF SSB Radio station
1 Furuno DSC terminal DSC 6A
2 Thrane & Thrane SAT C
1 Furuno SAT B FELCOM 81
1 Furuno Navtex receiver NX-500
2 Sailor Compact VHF RT4722 with DSC
1 Sailor RT 2048 simplex VHF

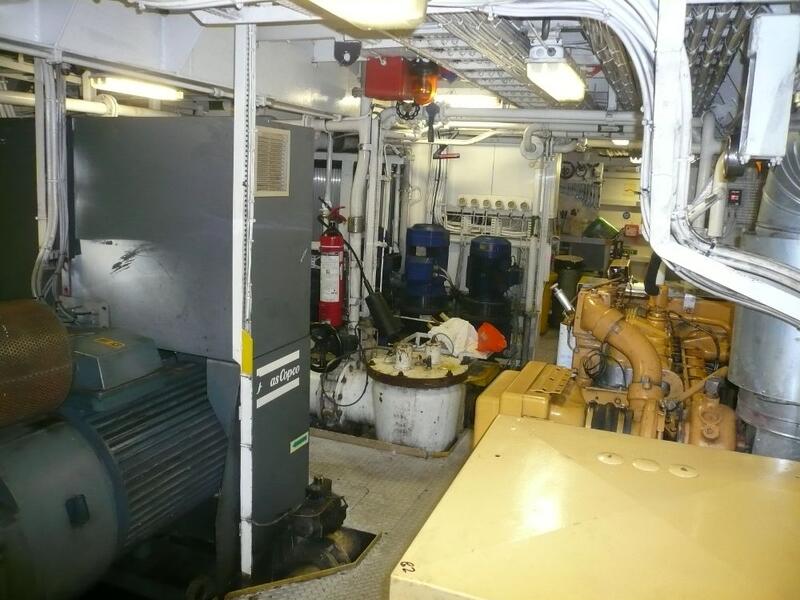

Engine(s)

Total power output (BHP) 5450 bhp
Main Engine(s) (make,type) 2 x
Main Propulsion System Twin Screw
Propellers 2

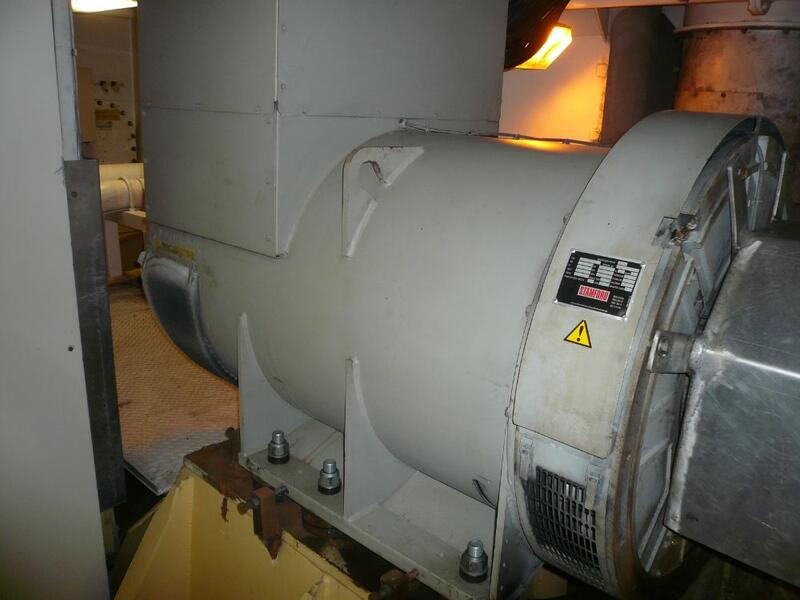

Shaft Alternators 2 x 1,690 KVA

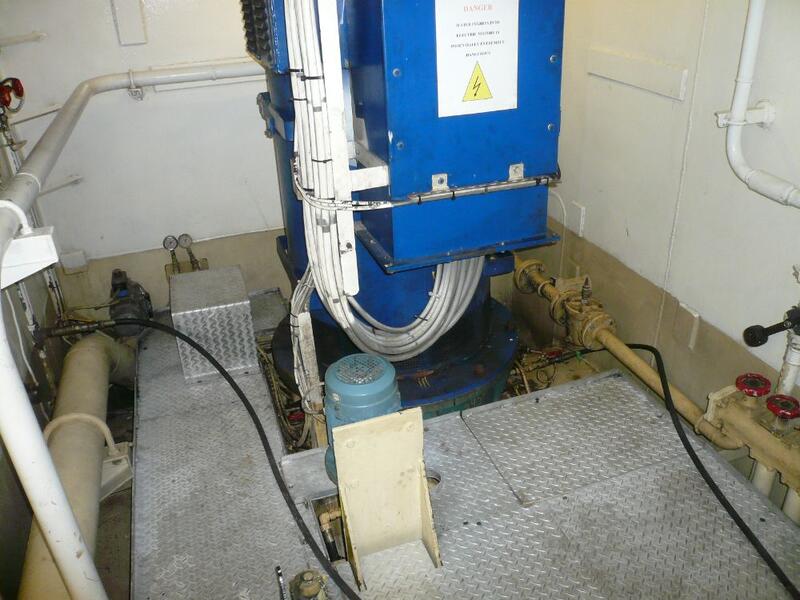

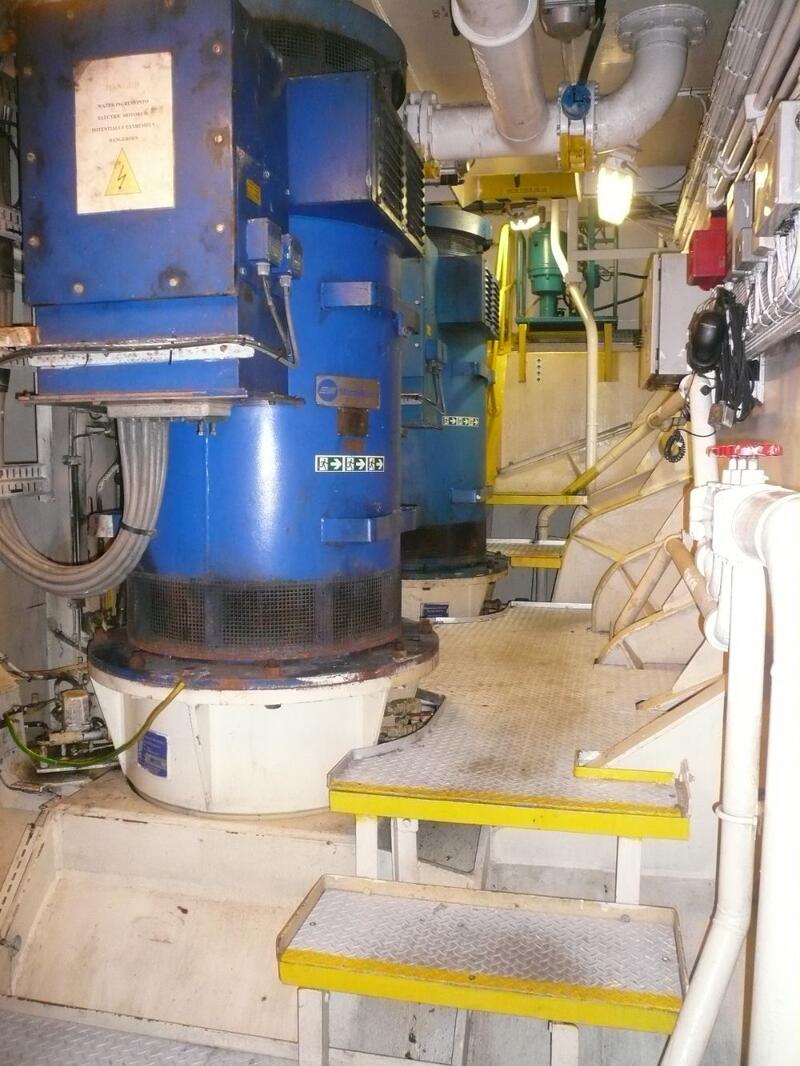

Thrusters Bow 1 x 800 BHP
Thruster Azimuth 1 x 1000 BHP
Thrusters Stern 2 x 800 BHP
Rudders 2 x High Lift
Propellers 2 x CPP

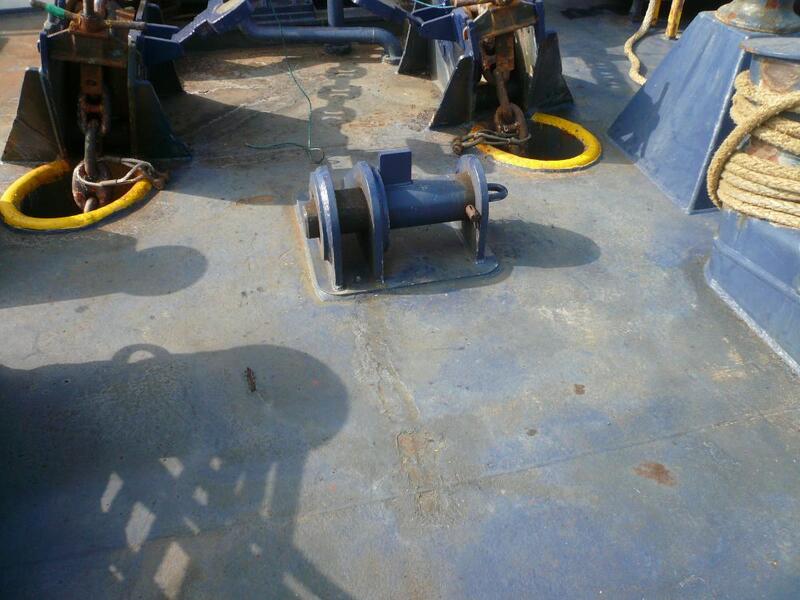

Capstans 2 x 8 T
Tuggher Winch 2 x 10T

Electronics

DYNAMIC POSITIONING SYSTEM (CLASS II)
Kongsberg Simrad SDP 21 (DP II)
2 x DPC 11 Controller Unit
"Green" DP Software module installed
RRM Joystick

REFERENCES
HiPAP acoustic systme
DGPS
Light weight Taut Wire (Mk 12)
Fan beam laser
1 x SPT 331 Transponder beacon
2 x RPT 316 RT Transponders beacon

Certification

Flag UNITED KINGDOM
Class Society and Notation DNV +1A1 Supply Vessel
Next DD March 2026
Next SS March 2028
Next Annual Survey March 2026
